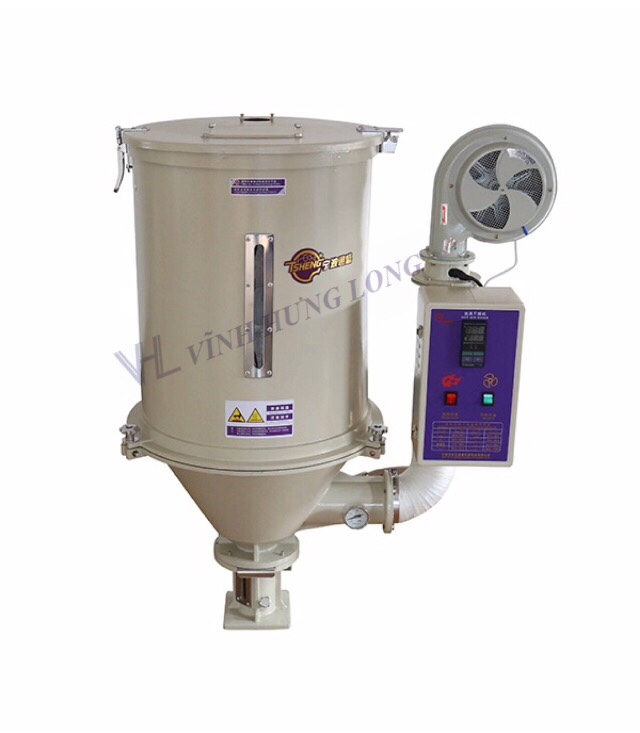

Save time , save manpower : tube on the base isolation type design, easy to clean material,simple and rapid refueling.A, L type tripod, hot air recovery device , exhaus fan entrance filter , air filter , exhaust cyclone cancerller, magnet, magnetic base , hopper suction box for optional europeanization .
Well- distributed Heated Wind The heat efficiency is high enough to great amount of drying time. Precise Temperature Controls The precise temperature controls ensure and keep a high accurecy of temoerature .Save Time and manpower as the hopper body and bottom are designed separately , and therefore it is very convernient to clean material and quite and quick to renew materials as well . The trustworthy design fine exterior, solid construction , short material -melting time greatly helps to promote the spouting spee
Model |
Diameter(mm)
|
Extemal size (mm) |
Capacity(kg) |
Heater Power(kw) |
Weight(kg) |
XHD-15KG |
Φ285 |
640×430×780 |
15 |
2.1 |
25 |
XHD-25KG |
Φ375 |
760×500×900 |
25 |
3.5 |
35 |
XHD-50KG |
Φ460 |
840×540×1030 |
50 |
4.8 |
50 |
XHD-75KG |
Φ525 |
950×600×1140 |
75 |
5.1 |
60 |
XHD-100KG |
Φ590 |
1080×700×1250 |
100 |
7.8 |
85 |
XHD-150KG |
Φ630 |
1120×760×1300 |
150 |
8.88 |
100 |
XHD-200KG |
Φ735 |
1250×850×1480 |
200 |
10 |
130 |
XHD-300KG |
Φ810 |
1300×920×1740 |
300 |
15 |
180 |
XHD-400KG |
Φ880 |
1400×1040×1760 |
400 |
20 |
200 |
XHD-500KG |
Φ880 |
1400×1040×1850 |
500 |
25 |
250 |
XHD-600KG |
Φ990 |
1600×1150×2150 |
600 |
27 |
300 |
XHD-800KG |
Φ1140 |
1700×1330×2660 |
800 |
32 |
380 |
XHD-1000KG |
Φ1140 |
1700×1330×2860 |
1000 |
32 |
500 |
