VACUUM AUTO - LOADER
product information
product name: VACUUM AUTO - LOADER
contact to buy : (028) 6276 7238
Detail

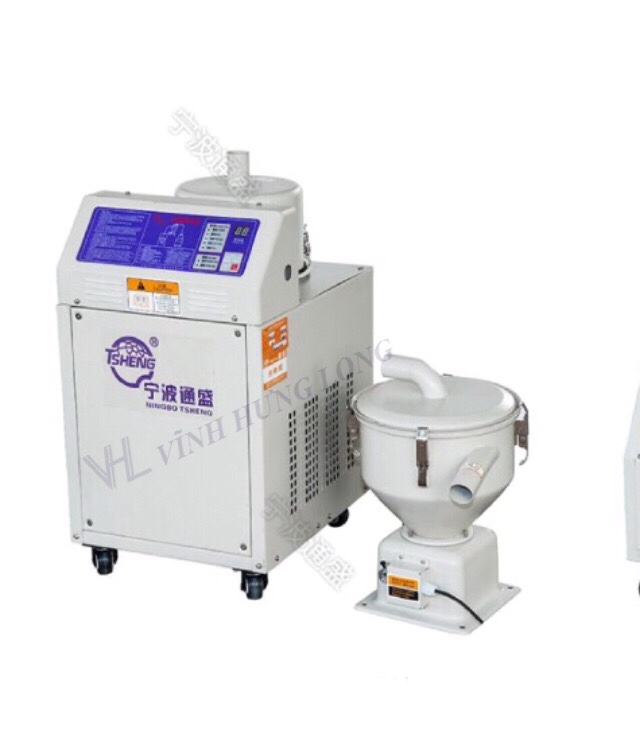

The mail engine and the material hopper are designed separately, and thus it is safe, easy and convernient to be operated . The whole operation is controlled by Micro Trip computer . Equipped muffler reduces the noise in operation. Stainless steel material hopper is light in weight, durable and very convenient for cleaning the device. The control box, being designed separately , is easy to be well maintained . Auto-buzzer will give alarm whilw lacking material. Auto – protective device protects motor againt overloading. The bunker with electronic eye cab be installed on the charging inlet of molding mathine directly the air revolving dust arrester reduce the clean times of filter, is suitable for the grinded material conveying. Can seclect two-material proportional valve, used for new material using or instant receiving of grinded material

 Model

XTL-300GN

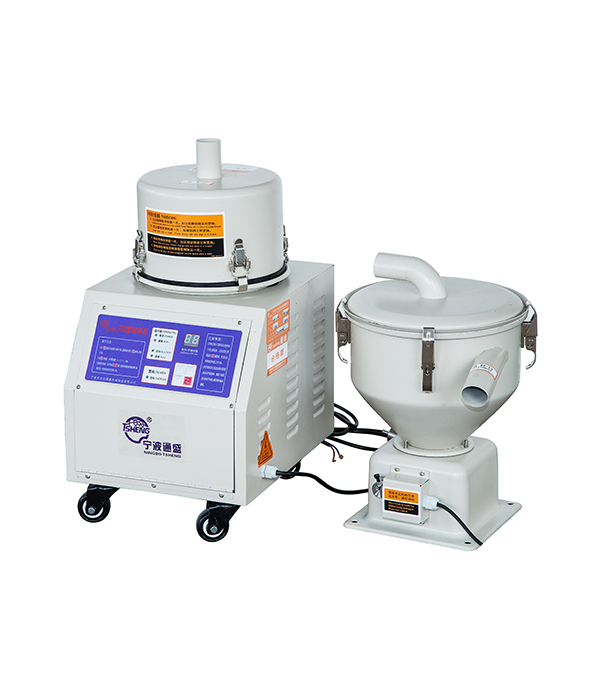

XTL-700GN

XTL-800

XTL-800GE

XTL-800GN

 Motorl

 Type

Carbon brush

Carbon brush

 Induction

 Industion

 Industion



Specification

1100w1Φ

1100w1Φ

1100w3Φ

1500w3Φ

2200w3Φ

Conveying Capacity (kg/hr)

350

400

450

550

650

Static wind pressure (MAX)

1500mmAq

1500mmAq

1450mmAq

2000mmAq

2200mmAq

 Filter

Φ185x90H

Φ185x115H

Φ188x115H

Φ188x115H

Φ188x115H

Volume of Materal hopper (L)

6

6

6.5

6.5

6.5

Inside Diameter of conveying pige (mm)

Φ38

Φ38

Φ38

Φ38

Φ38

External Size (mm)

 Main Body LWH

500x400x600

480x310x430

680x370x500

700x370x500

700x370x500

 Material hopper LWH

430x440x295

430x440x295

430x440x295

430x440x295

Weiht (kg)

 Main Body

13.5

15.5

35

45

45

 Material hopper

5

6

6

6



 Model

XTL-5HP

XTL-7.5HP

XTL-10HP

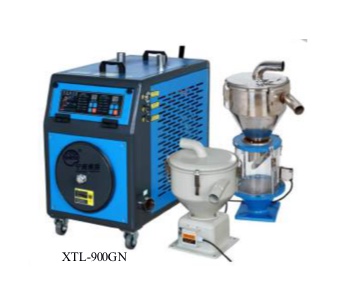

XTL-900GN-2

XTL-800GN2-P

 Motorl

Type

 Induction

Induction

 Induction

Induction

 Induction



 Specification

3500w3Φ

5500w3Φ

7500w3Φ

2200w3Φ

1100w3Φ

Conveying Capacity (kg/hr)

700

1100

1500

450+450

650

 Static wind pressure (MAX)

2200mmAq

2500mmAq

2800mmAq

2000mmAq

1450mmAq

Filter

Φ188x260H

Φ188x260H

Φ188x260H

Φ188x115H

Φ188x115H

Volume of material hopper(L)

25

25

25

6.5

12

6.5

Inside Diameter of conveying pige(mm)

Φ51

Φ51

Φ63.5

Φ38

Φ38

External Size (mm)

 Main Body LW H

700x500x850

700x600x850

750x650x850

850x480x740

680x370x500

Material hopper LW H

430x440x500

430x440x500

430x440x500

430x440x500

430x440x700

Weiht(kg)

Main Body

60

70

80

50

35

Material Hopper

8

8

8

6+6

12
