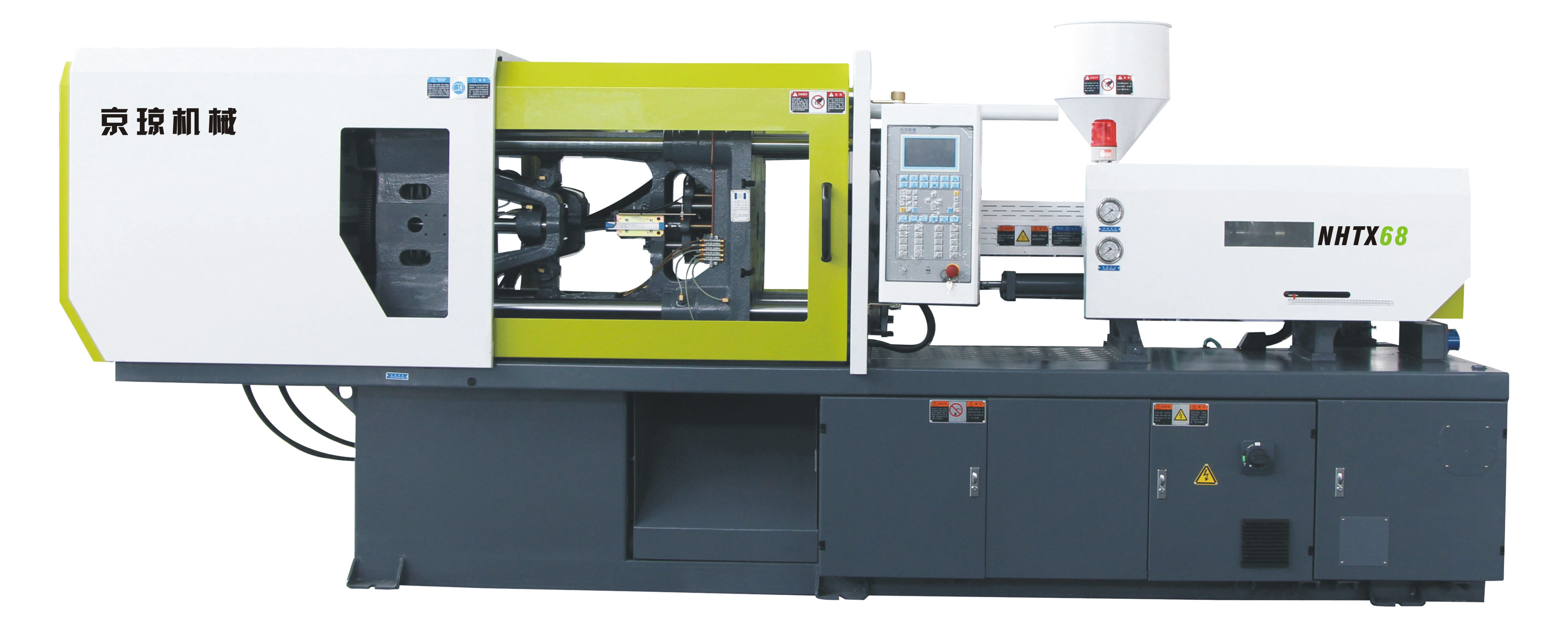

NHTX/JD servo energy- sayving injection molding machine is equipped with high performance servo motor controlling system, the machines output power can vary is accordance with the loading changes, which reduce energy consumption and nosie . The motor rotates st lower speed in holding pressure stage, and doesn't work in cooling time .It realizes a new revolution in the field of injection molding machine .
compared with the traditional hydraulic power control system, the repeatability of servo hydraulic machine system is much higher, and can be achivde by 3%, it can effectively ensure the stability of products and reduce the defective rate .
servo energy-saving injection molding machines: there is no extra energy consumption due to output volume changes according to load alteration . In the phase of holding pressure, servo motor roates at lower speed and consumes a little of energy.In the phase of cooling . motor does't work and consumes no energy. According to different products, servo energy - saving injection molding machines will save 20%-80% energy and bring you prominet economic benefit .
|
Specification Item |
|
NHTX 68 |
NHTX 90 |
||||
|
A |
B |
C |
A |
B |
C |
||
|
NJECTION UNIT |
CN |
|
|
|
|
|
|
|
Screw diameter |
Mm |
26 |
30 |
32 |
30 |
32 |
35 |
|
ScrewI/d ratio |
L/D |
24.5 |
22 |
20.6 |
23.5 |
22 |
20.1 |
|
Shot volume ( theoretical) |
cm³ |
67.6 |
90 |
102 |
117 |
133 |
158 |
|
Intrection weight ( ps) |
G |
61.4 |
82 |
93 |
106 |
121 |
144 |
|
Intrection rate |
g/s |
55 |
73 |
83 |
71 |
81 |
97 |
|
Intrec tion oressure |
MPa |
227 |
170 |
150 |
230 |
203 |
170 |
|
Screw speed |
Rpm |
195 |
240 |
||||
|
CLAMPING UNIT |
|
|
|
||||
|
Clamping force |
KN |
680 |
900 |
||||
|
Open stroke |
mm |
280 |
320 |
||||
|
Space between tie bars ( w*h) |
mm |
310x310 |
360x360 |
||||
|
Max.Mold height |
mm |
320 |
350 |
||||
|
Min . Mod height |
mm |
100 |
150 |
||||
|
Ejector stroke |
mm |
80 |
90 |
||||
|
Ejector force |
KN |
28 |
30 |
||||
|
OTHERS |
|
|
|
||||
|
Max.pump pressure |
MPa |
16 |
16 |
||||
|
Pump motor power |
KW |
7.5 |
11 |
||||
|
Heating power |
KW |
6.8 |
7.55 |
||||
|
Machine dimension(l*w*h) |
m |
3.65x1.13x1.73 |
3.81x1.19x1.79 |
||||
|
Oiltank cubage |
L |
135 |
180 |
||||
|
Machine weight |
t |
2.5 |
2.9 |
||||
|
Specification Item |
|
NHTX 110 |
NHTX 140 |
||||
|
A |
B |
C |
A |
B |
C |
||
|
NJECTION UNIT |
CN |
|
|
|
|
|
|
|
Screw diameter |
Mm |
32 |
35 |
38 |
38 |
42 |
45 |
|
ScrewI/d ratio |
L/D |
24.1 |
22 |
20.2 |
24.3 |
22 |
20.5 |
|
Shot volume( theoretical) |
cm³ |
137 |
163 |
192 |
193 |
235 |
270 |
|
Intrection weight ( ps) |
G |
125 |
148 |
175 |
176 |
213 |
246 |
|
Intrection rate |
g/s |
74 |
89 |
105 |
94 |
115 |
132 |
|
Intrec tion oressure |
MPa |
260 |
219 |
186 |
205 |
170 |
147 |
|
Screw speed |
Rpm |
210 |
190 |
||||
|
CLAMPING UNIT |
|
|
|
||||
|
Clamping force |
KN |
1100 |
1400 |
||||
|
Open stroke |
mm |
350 |
380 |
||||
|
Space between tie bars ( w*h) |
mm |
410x410 |
460x460 |
||||
|
Max.Mold height |
mm |
380 |
450 |
||||
|
Min . Mod height |
mm |
150 |
160 |
||||
|
Ejector stroke |
mm |
100 |
120 |
||||
|
Ejector force |
KN |
38 |
50 |
||||
|
OTHERS |
|
|
|
||||
|
Max.pump pressure |
MPa |
16 |
16 |
||||
|
Pump motor power |
KW |
13 |
13 |
||||
|
Heating power |
KW |
8.2 |
9.2 |
||||
|
Machine dimension(l*w*h) |
m |
4.15x1.12x2.00 |
4.51x1.16x1.87 |
||||
|
Oiltank cubage |
L |
200 |
265 |
||||
|
Machine weight |
t |
3.4 |
4.0 |
||||
|
Specification Item |
|
NHTX 160 |
NHTX 200 |
||||
|
A |
B |
C |
A |
B |
C |
||
|
NJECTION UNIT |
CN |
|
|
|
|
|
|
|
Screw diameter |
Mm |
42 |
45 |
50 |
45 |
50 |
55 |
|
ScrewI/d ratio |
L/D |
23.6 |
22 |
19.8 |
24.5 |
22 |
20 |
|
Shotvolume( theoretical) |
cm³ |
305 |
350 |
432 |
340 |
420 |
510 |
|
Intrection weight ( ps) |
G |
277 |
319 |
393 |
310 |
383 |
466 |
|
Intrection rate |
g/s |
138 |
160 |
196 |
124 |
154 |
186 |
|
Intrec tion oressure |
MPa |
203 |
177 |
143 |
207 |
168 |
139 |
|
Screw speed |
Rpm |
190 |
170 |
||||
|
CLAMPING UNIT |
|
|
|
||||
|
Clamping force |
KN |
1600 |
2000 |
||||
|
Open stroke |
mm |
435 |
495 |
||||
|
Space between tie bars ( w*h) |
mm |
480x480 |
530x530 |
||||
|
Max.Mold height |
mm |
520 |
530 |
||||
|
Min . Mod height |
mm |
180 |
200 |
||||
|
Ejector stroke |
mm |
135 |
140 |
||||
|
Ejector force |
KN |
50 |
70 |
||||
|
OTHERS |
|
|
|
||||
|
Max.pump pressure |
MPa |
16 |
16 |
||||
|
Pump motor power |
KW |
18.5 |
18.5 |
||||
|
Heating power |
KW |
12.5 |
13.6 |
||||
|
Machine dimension(l*w*h) |
m |
4.86x1.30x2.10 |
5.22x1.60x2.21 |
||||
|
Oiltank cubage |
L |
300 |
300 |
||||
|
Machine weight |
t |
5.4 |
6.4 |
||||
|
Specification Item |
|
NHTX 250 |
NHTX 280 |
||||
|
A |
B |
C |
A |
B |
C |
||
|
NJECTION UNIT |
CN |
|
|
|
|
|
|
|
Screw diameter |
Mm |
50 |
55 |
60 |
55 |
60 |
65 |
|
ScrewI/d ratio |
L/D |
24.2 |
22 |
20.2 |
24 |
22 |
20.3 |
|
Shot volume( theoretical) |
cm³ |
455 |
550 |
655 |
676 |
805 |
945 |
|
Intrection weight ( ps) |
G |
416 |
503 |
600 |
615 |
732 |
859 |
|
Intrection rate |
g/s |
187 |
227 |
270 |
223.5 |
266 |
312.2 |
|
Intrec tion oressure |
MPa |
205 |
169 |
142 |
200 |
168 |
143 |
|
Screw speed |
Rpm |
180 |
220 |
||||
|
CLAMPING UNIT |
|
|
|
||||
|
Clamping force |
KN |
2500 |
2800 |
||||
|
Open stroke |
mm |
540 |
590 |
||||
|
Space between tie bars ( w*h) |
mm |
580x580 |
630x630 |
||||
|
Max.Mold height |
mm |
550 |
630 |
||||
|
Min . Mod height |
mm |
200 |
200 |
||||
|
Ejector stroke |
mm |
150 |
150 |
||||
|
Ejector force |
KN |
70 |
70 |
||||
|
OTHERS |
|
|
|
||||
|
Max.pump pressure |
MPa |
16 |
16 |
||||
|
Pump motor power |
KW |
22 |
30 |
||||
|
Heating power |
KW |
15 |
18.3 |
||||
|
Machine dimension(l*w*h) |
m |
5.82x1.60x2.24 |
6.11x1.81x2.41 |
||||
|
Oiltank cubage |
L |
380 |
390 |
||||
|
Machine weight |
t |
7.5 |
8.8 |
||||
|
Specification Item |
|
NHTX 320 |
NHTX 400 |
||||
|
A |
B |
C |
A |
B |
C |
||
|
NJECTION UNIT |
CN |
|
|
|
|
|
|
|
Screw diameter |
Mm |
67 |
70 |
75 |
70 |
75 |
80 |
|
ScrewI/d ratio |
L/D |
23 |
22 |
20.5 |
23.6 |
22 |
20.6 |
|
Shot volume( theoretical) |
cm³ |
1181 |
1289 |
1480 |
1500 |
1723 |
1960 |
|
Intrection weight ( ps) |
G |
1076 |
1175 |
1349 |
1365 |
1567 |
1784 |
|
Intrection rate |
g/s |
337 |
368 |
422 |
344 |
395 |
449 |
|
Intrec tion oressure |
MPa |
183 |
168 |
146 |
199 |
173 |
152 |
|
Screw speed |
Rpm |
195 |
150 |
||||
|
CLAMPING UNIT |
|
|
|
||||
|
Clamping force |
KN |
3200 |
4000 |
||||
|
Open stroke |
mm |
660 |
720 |
||||
|
Space between tie bars ( w*h) |
mm |
680x680 |
730x730 |
||||
|
Max.Mold height |
mm |
720 |
780 |
||||
|
Min . Mod height |
mm |
250 |
250 |
||||
|
Ejector stroke |
mm |
160 |
190 |
||||
|
Ejector force |
KN |
70 |
110 |
||||
|
OTHERS |
|
|
|
||||
|
Max.pump pressure |
MPa |
16 |
16 |
||||
|
Pump motor power |
KW |
37 |
45 |
||||
|
Heating power |
KW |
24.7 |
29.3 |
||||
|
Machine dimension(l*w*h) |
m |
7.08x1.99x2.38 |
7.56x2.00x2.52 |
||||
|
Oiltank cubage |
L |
680 |
770 |
||||
|
Machine weight |
t |
12.8 |
15.4 |
||||
|
Specification Item |
|
NHTX 500 |
NHTX 550 |
||||||
|
A |
B |
C |
D |
A |
B |
C |
D |
||
|
NJECTION UNIT |
CN |
|
|
|
|
|
|
|
|
|
Screw diameter |
Mm |
75 |
80 |
85 |
90 |
80 |
85 |
90 |
95 |
|
ScrewI/d ratio |
L/D |
23.7 |
22 |
20.7 |
19.5 |
23.4 |
22 |
20.7 |
19.6 |
|
Shot volume( theoretical) |
cm³ |
1727 |
1965 |
2218 |
2487 |
2215 |
2500 |
2802 |
3122 |
|
Intrection weight ( ps) |
G |
1560 |
1788 |
2018 |
2266 |
2015 |
2275 |
2550 |
2841 |
|
Intrection rate |
g/s |
386 |
442 |
499 |
560 |
429 |
484 |
543 |
604 |
|
Intrec tion oressure |
MPa |
191 |
168 |
148 |
132 |
184 |
163 |
145 |
130 |
|
Screw speed |
Rpm |
130 |
130 |
||||||
|
CLAMPING UNIT |
|
|
|
||||||
|
Clamping force |
KN |
5000 |
5500 |
||||||
|
Open stroke |
mm |
770 |
860 |
||||||
|
Space between tie bars ( w*h) |
mm |
830x830 |
850x850 |
||||||
|
Max.Mold height |
mm |
810 |
860 |
||||||
|
Min . Mod height |
mm |
330 |
330 |
||||||
|
Ejector stroke |
mm |
240 |
240 |
||||||
|
Ejector force |
KN |
150 |
150 |
||||||
|
OTHERS |
|
|
|
||||||
|
Max.pump pressure |
MPa |
16 |
16 |
||||||
|
Pump motor power |
KW |
55 |
55 |
||||||
|
Heating power |
KW |
33 |
40 |
||||||
|
Machine dimension(l*w*h) |
m |
7.74x1.89x2.69 |
8.6x2.1x2.7 |
||||||
|
Oiltank cubage |
L |
900 |
900 |
||||||
|
Machine weight |
t |
19 |
21 |
||||||
|
Specification Item |
|
NHTX 680 |
NHTX 730 |
||||||
|
A |
B |
C |
D |
A |
B |
C |
D |
||
|
NJECTION UNIT |
CN |
|
|
|
|
|
|
|
|
|
Screw diameter |
Mm |
90 |
95 |
100 |
105 |
90 |
95 |
105 |
110 |
|
ScrewI/d ratio |
L/D |
23.3 |
22 |
20.7 |
19.9 |
23.2 |
22 |
19.9 |
19 |
|
Shot volume( theoretical) |
cm³ |
2544 |
2835 |
3140 |
3461 |
2925 |
3258 |
3980 |
4369 |
|
Intrection weight ( ps) |
G |
2315 |
2580 |
2858 |
3149 |
2662 |
2965 |
3622 |
3975 |
|
Intrection rate |
g/s |
552 |
612 |
679 |
748 |
587 |
654 |
798 |
877 |
|
Intrec tion oressure |
MPa |
184 |
165 |
149 |
135 |
195 |
175 |
143 |
130 |
|
Screw speed |
Rpm |
150 |
115 |
||||||
|
CLAMPING UNIT |
|
|
|
||||||
|
Clamping force |
KN |
6800 |
7300 |
||||||
|
Open stroke |
mm |
920 |
950 |
||||||
|
Space between tie bars ( w*h) |
mm |
920x920 |
950x950 |
||||||
|
Max.Mold height |
mm |
920 |
960 |
||||||
|
Min . Mod height |
mm |
350 |
400 |
||||||
|
Ejector stroke |
mm |
260 |
280 |
||||||
|
Ejector force |
KN |
210 |
210 |
||||||
|
OTHERS |
|
|
|
||||||
|
Max.pump pressure |
MPa |
16 |
16 |
||||||
|
Pump motor power |
KW |
30+37 |
37+37 |
||||||
|
Heating power |
KW |
49 |
59.1 |
||||||
|
Machine dimension(l*w*h) |
m |
10.65x2.37x2.63 |
11.15x2.33x3.55 |
||||||
|
Oiltank cubage |
L |
1040 |
1200 |
||||||
|
Machine weight |
t |
28 |
35.5 |
||||||
|
Specification Item |
|
NHTX 780 |
NHTX 1000 |
||||||
|
A |
B |
C |
D |
A |
B |
C |
D |
||
|
NJECTION UNIT |
CN |
|
|
|
|
|
|
|
|
|
Screw diameter |
Mm |
90 |
95 |
105 |
110 |
90 |
100 |
110 |
115 |
|
ScrewI/d ratio |
L/D |
23.2 |
22 |
19.9 |
19 |
25.5 |
23 |
20.9 |
20 |
|
Shot volume( theoretical) |
cm³ |
2925 |
3258 |
3980 |
4369 |
2988 |
3689 |
4464 |
4879 |
|
Intrection weight ( ps) |
G |
2662 |
2965 |
3622 |
3975 |
2719 |
3356 |
4062 |
4440 |
|
Intrection rate |
g/s |
587 |
654 |
798 |
877 |
590 |
729 |
880 |
960 |
|
Intrec tion oressure |
MPa |
195 |
175 |
143 |
130 |
216 |
176 |
146 |
133 |
|
Screw speed |
Rpm |
115 |
100 |
||||||
|
CLAMPING UNIT |
|
|
|
||||||
|
Clamping force |
KN |
7800 |
10000 |
||||||
|
Open stroke |
mm |
980 |
1120 |
||||||
|
Space between tie bars ( w*h) |
mm |
980x980 |
1080x1080 |
||||||
|
Max.Mold height |
mm |
1000 |
1100 |
||||||
|
Min . Mod height |
mm |
400 |
400 |
||||||
|
Ejector stroke |
mm |
280 |
325 |
||||||
|
Ejector force |
KN |
210 |
210 |
||||||
|
OTHERS |
|
|
|
||||||
|
Max.pump pressure |
MPa |
16 |
16 |
||||||
|
Pump motor power |
KW |
37+37 |
37+45 |
||||||
|
Heating power |
KW |
59.1 |
63.9 |
||||||
|
Machine dimension(l*w*h) |
m |
11.34x2.39x2.55 |
12.10x2.51x2.95 |
||||||
|
Oiltank cubage |
L |
1250 |
1700 |
||||||
|
Machine weight |
t |
38 |
42 |
||||||
|
Specification Item |
NHTX 1250 |
NHTX 1500 |
|||||||
|
A |
B |
C |
D |
A |
B |
C |
D |
||
|
NJECTION UNIT |
CN |
|
|
|
|
|
|
|
|
|
Screw diameter |
Mm |
110 |
115 |
120 |
125 |
110 |
120 |
130 |
140 |
|
ScrewI/d ratio |
L/D |
23 |
22 |
21 |
20.2 |
25.7 |
24 |
22 |
20 |
|
Shot volume( theoretical) |
cm³ |
5270 |
5760 |
6272 |
6805 |
6269 |
7160 |
8755 |
10150 |
|
Intrection weight ( ps) |
G |
4796 |
5242 |
5707 |
6193 |
5705 |
6789 |
7967 |
9236 |
|
Intrection rate |
g/s |
793 |
867 |
944 |
1024 |
790 |
940 |
1102 |
1280 |
|
Intrec tion oressure |
MPa |
186 |
170 |
156 |
144 |
205 |
172 |
146 |
126 |
|
Screw speed |
Rpm |
90 |
90 |
||||||
|
CLAMPING UNIT |
|
|
|
||||||
|
Clamping force |
KN |
12500 |
15000 |
||||||
|
Open stroke |
mm |
1320 |
1350 |
||||||
|
Space between tie bars ( w*h) |
mm |
1250x1250 |
1310x1300 |
||||||
|
Max.Mold height |
mm |
1300 |
1400 |
||||||
|
Min . Mod height |
mm |
550 |
600 |
||||||
|
Ejector stroke |
mm |
380 |
360 |
||||||
|
Ejector force |
KN |
245 |
260 |
||||||
|
OTHERS |
|
|
|
||||||
|
Max.pump pressure |
MPa |
16 |
16 |
||||||
|
Pump motor power |
KW |
45+55 |
55+55 |
||||||
|
Heating power |
KW |
74.4 |
81.9 |
||||||
|
Machine dimension(l*w*h) |
m |
12.9x2.7x3.3 |
14.78x2.84x4.13 |
||||||
|
Oiltank cubage |
L |
2100 |
2900 |
||||||
|
Machine weight |
t |
59 |
83 |
||||||
|
Specification Item |
|
NHTX 1800 |
NHTX 2200A |
||||||
|
A |
B |
C |
D |
A |
B |
C |
D |
||
|
NJECTION UNIT |
CN |
|
|
|
|
|
|
|
|
|
Screw diameter |
Mm |
120 |
130 |
140 |
150 |
130 |
140 |
150 |
160 |
|
ScrewI/d ratio |
L/D |
25.4 |
23.4 |
21.7 |
18.9 |
25.9 |
24 |
22.4 |
20.9 |
|
Shot volume( theoretical) |
cm³ |
7460 |
8755 |
10150 |
11655 |
9680 |
11230 |
12890 |
14670 |
|
Intrection weight ( ps) |
G |
6789 |
7967 |
9236 |
10606 |
8808 |
10219 |
11730 |
13350 |
|
Intrection rate |
g/s |
1056 |
1240 |
1438 |
1650 |
1172 |
1360 |
1560 |
1776 |
|
Intrec tion oressure |
MPa |
179 |
152 |
131 |
114 |
184 |
159 |
138 |
122 |
|
Screw speed |
Rpm |
85 |
70 |
||||||
|
CLAMPING UNIT |
|
|
|
||||||
|
Clamping force |
|
|
|
||||||
|
Open stroke |
KN |
18000 |
22000 |
||||||
|
Space between tie bars ( w*h) |
mm |
1550 |
1810 |
||||||
|
Max.Mold height |
mm |
1500x1400 |
1750x1600 |
||||||
|
Min . Mod height |
mm |
1500 |
1700 |
||||||
|
Ejector stroke |
mm |
700 |
750 |
||||||
|
Ejector force |
mm |
420 |
420 |
||||||
|
OTHERS |
KN |
400 |
490 |
||||||
|
Max.pump pressure |
|
|
|
||||||
|
Pump motor power |
MPa |
16 |
16 |
||||||
|
Heating power |
KW |
45+45+45 |
55+55+55 |
||||||
|
Machine dimension(l*w*h) |
KW |
94.9 |
114.5 |
||||||
|
Oiltank cubage |
m |
16.31x3.07x4.17 |
21.3x3.4x4.3 |
||||||
|
Machine weight |
L |
3000 |
3700 |
||||||
|
ζΊε¨ιι |
t |
123 |
137 |
||||||
|
Specification Item |
|
NHTX 2200B |
NHTX 3000 |
||||
|
A |
B |
C |
A |
B |
C |
||
|
NJECTION UNIT |
CN |
|
|
|
|
|
|
|
Screw diameter |
Mm |
150 |
160 |
180 |
180 |
210 |
220 |
|
ScrewI/d ratio |
L/D |
25.9 |
24 |
22 |
24 |
24 |
22.9 |
|
Shot volume( theoretical) |
cm³ |
18360 |
20890 |
26450 |
29390 |
40003 |
43904 |
|
Intrection weight ( ps) |
G |
16708 |
19000 |
24060 |
2675 |
36402 |
39953 |
|
Intrection rate |
g/s |
1230 |
1400 |
1780 |
1468 |
2000 |
2200 |
|
Intrec tion oressure |
MPa |
190 |
168 |
132 |
210 |
155 |
141 |
|
Screw speed |
Rpm |
65 |
50 |
||||
|
CLAMPING UNIT |
|
|
|
||||
|
Clamping force |
KN |
22000 |
30000 |
||||
|
Open stroke |
mm |
1810 |
2000 |
||||
|
Space between tie bars ( w*h) |
mm |
1750x1600 |
1900x1750 |
||||
|
Max.Mold height |
mm |
1700 |
1900 |
||||
|
Min . Mod height |
mm |
750 |
1000 |
||||
|
Ejector stroke |
mm |
420 |
450 |
||||
|
Ejector force |
KN |
490 |
565 |
||||
|
OTHERS |
|
|
|
||||
|
Max.pump pressure |
MPa |
16 |
16 |
||||
|
Pump motor power |
KW |
55+55+55 |
55+55+55+55 |
||||
|
Heating power |
KW |
114.5 |
204.5 |
||||
|
Machine dimension(l*w*h) |
m |
21.3x3.4x4.3 |
22.20x4.71x4.32 |
||||
|
Oiltank cubage |
L |
3700 |
4500 |
||||
|
Machine weight |
t |
137 |
200 |
||||
maybe you want to see
support online
Business Department 1
0903 768 722
vinhhunglongvn@gmail.com
Business Department 2
0902 490 268
vinhhunglongvn@gmail.com
Business Department 3
028 6276 7238
vinhhunglongvn@gmail.com
Business department 4
0909 164 158
vinhhunglongvn@gmail.com
Business department 5
0902 443 421
vinhhunglongvn@gmail.com
Technical Department
0908 691 688
vinhhunglongvn@gmail.com
video product
News
STATISTICAL ACCESS
ONLINE : 238
today : 816
yesterday : 2
total : 645369
Vinh Hung Long International Trading Co., Ltd
1132/11 Province Highway 10, Ward Tan Tao, Binh Tan District, Ho Chi Minh City
(028) 6276 7238
0908 691 688 - 0903 768 722
vinhhunglongvn@gmail.com
http://vinhhunglong.com
REQUEST A QUOTE
LINK FACEBOOK
Copy right @2018 Vinh Hung Long. Allright Reserved
